Rental and sale of a dual-track 3D AOI: Zenith Alpha, 8 megapixels, 15um, 4 light sources, WIN10 system

If you need any second-hand machine, equipment, pls feel free to contact ZK Electronic Technology!

1. System Overview:

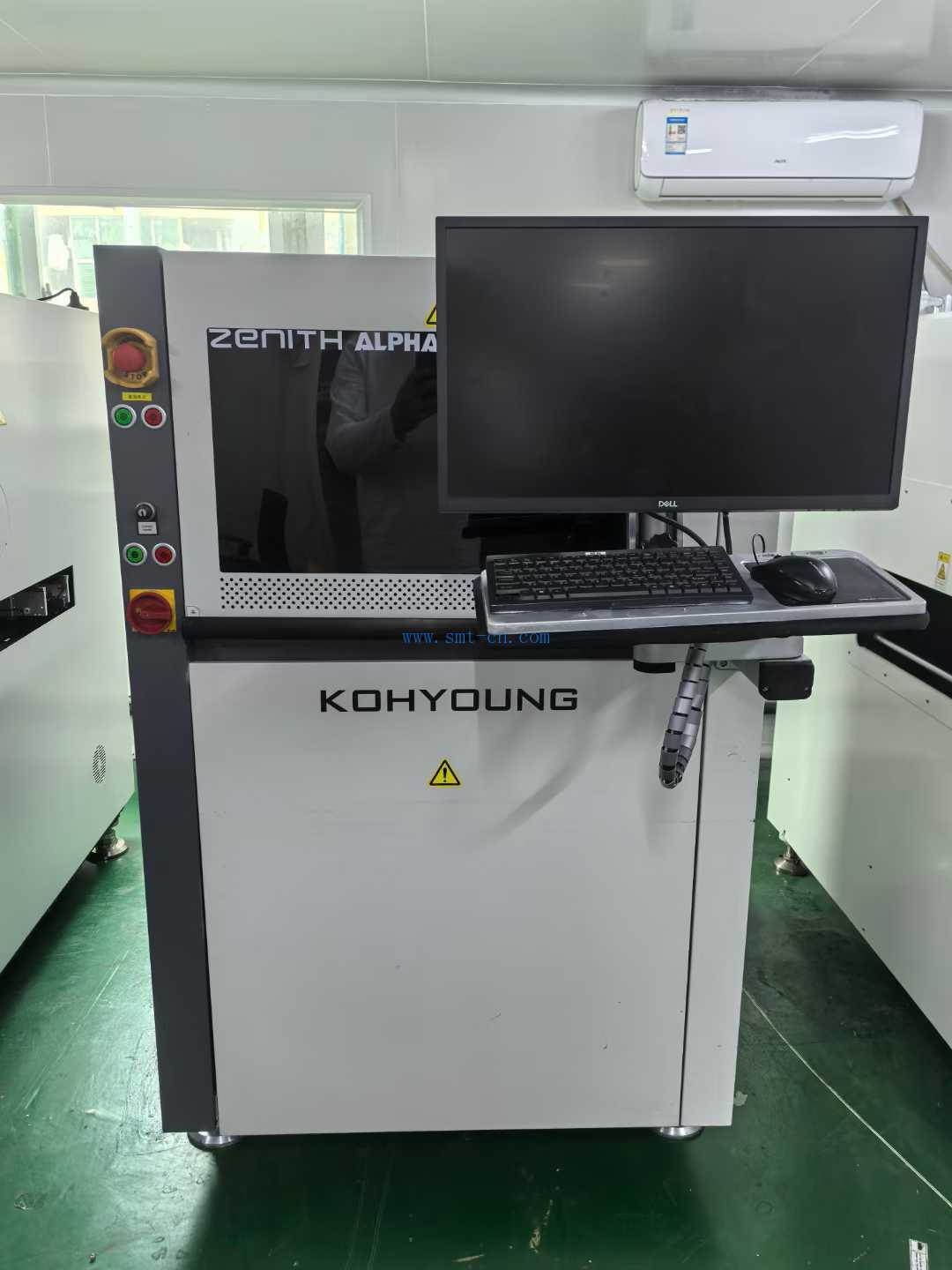

Model: Zenith Alpha (Dual-track 3D AOI)

Technology: 3D Automated Optical Inspection (AOI)

Application: Primarily used for inspection of solder joints, component placement, and defects in assembled printed circuit boards (PCBs).

2. Key Specifications:
Resolution:

8 Megapixels camera for high-resolution imaging.

Pixel Size: 15um for high precision inspection.

Lighting:

Equipped with 4 Light Sources:

Top light: Provides general illumination for surface features.

Side light: Enhances the detection of features like solder joints and component placement.

Backlight: Used to detect defects like solder bridging or incomplete solder joints.

Off-axis light: Helps in analyzing different angles for detailed inspection.

3. Inspection Features:
Defect Detection: Detects a wide range of defects, including:

Solder joint defects (e.g., insufficient solder, solder bridges).

Component placement issues (e.g., misalignment, component skew).

Voiding and bridging.

Missing components or incorrect component placement.

Measurement Capabilities:

3D Inspection: Measures height, volume, and other dimensional attributes of solder joints and components.

3D Shape Inspection: Using structured light or laser triangulation, it provides highly accurate 3D inspection.

4. System Features:
Dual Track (Dual-Rail): This allows for high-speed inspection of multiple boards in parallel, increasing throughput.

Automatic Calibration: Ensures precision and reliability through automatic calibration mechanisms.

High Throughput: Optimized for high-speed inspection and suitable for mass production environments.

Full PCB Coverage: Ensures that every part of the PCB is inspected for quality.

5. Software and Integration:
Operating System: Runs on Windows 10 (WIN10), offering a stable platform with modern user interfaces.

Software Suite: KOHYOUNG typically provides proprietary software that includes:

Real-time defect detection and reporting.

Statistical analysis and reporting tools.

Defect classification and visualization.

Comprehensive process control with automated reporting.

System Integration: Can be integrated with other inspection equipment, production line control systems (e.g., SPI, solder paste printers), and Manufacturing Execution Systems (MES) to provide a seamless production workflow.

6. Additional Features:
3D Visualization: The system can generate 3D models of the PCB for detailed analysis of solder joints and components.

Advanced Algorithms: Uses machine learning and image recognition algorithms for precise defect detection, ensuring low false positives.

In-Line Inspection: Suitable for in-line production environments where it works seamlessly with other equipment to inspect boards as they are produced.
