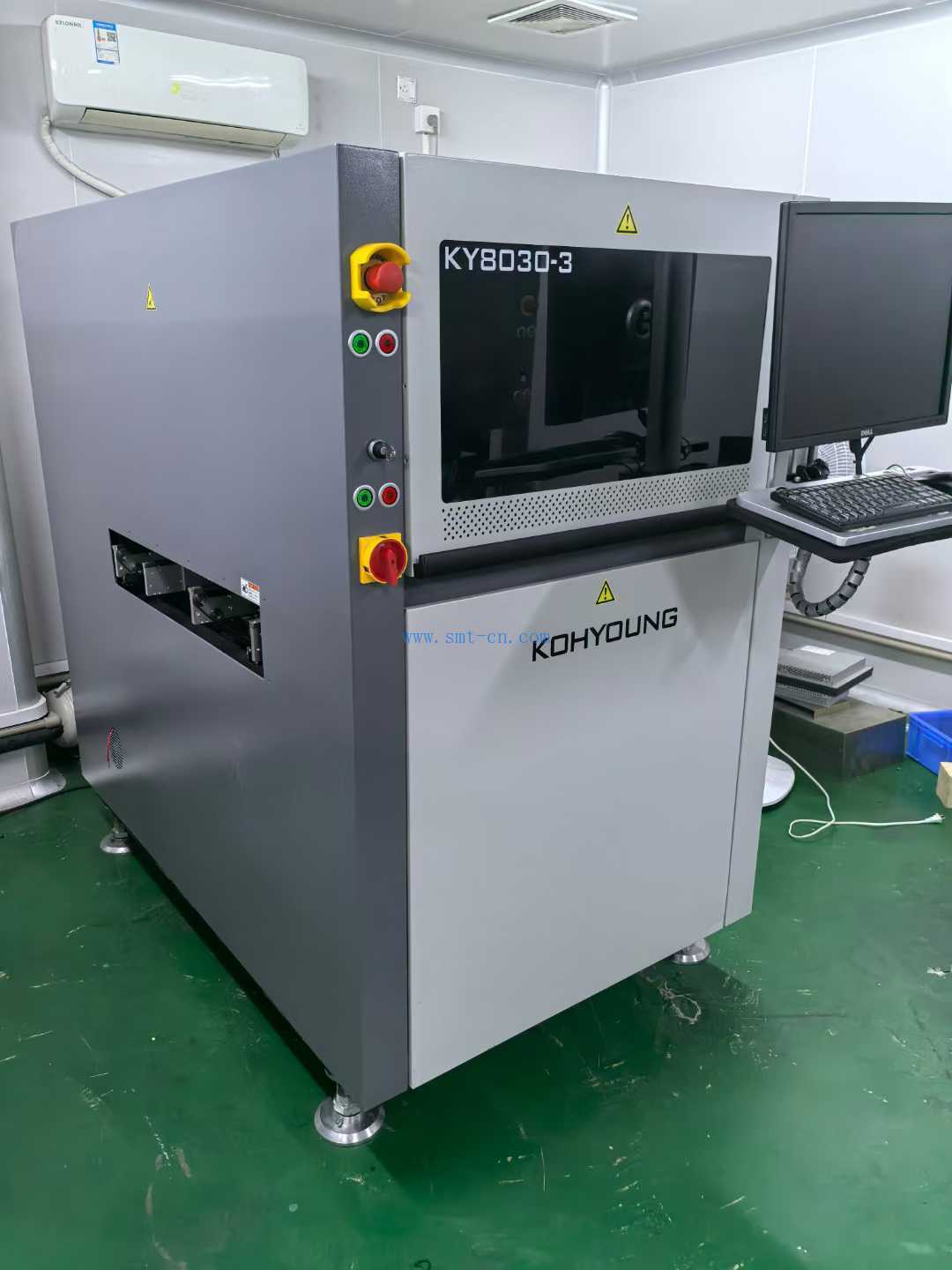

Spot Rental and Sale KOHYOUNG Dual Rail 3D SPI: KY8030-3, 4 megapixel, 15um or 20um, WIN10 System

The KOHYOUNG KY8030-3 is a 3D SPI (Solder Paste Inspection) system typically used in the electronics manufacturing industry for quality control, specifically inspecting solder paste applications.

1. System Overview:
Model: KY8030-3

Technology: 3D Solder Paste Inspection (SPI)

Application: Primarily used in Surface-Mount Technology (SMT) lines for inspecting the quality of solder paste prints.

2. Key Specifications:
Resolution:

4 Megapixel Camera

Pixel Size: 15um or 20um

Measurement Method: 3D measurement using structured light technology for highly accurate inspection of solder paste.

3. Inspection Capability:
Inspection Parameters:

Solder paste height

Area ratio

Volume ratio

Spread area

Defect Detection: The system is capable of detecting a wide range of paste defects, including insufficient solder, excessive paste, misalignment, bridging, and voids.

4. System Features:
Dual Rail: The system has a dual rail setup, which allows for faster and more efficient inspection.

Automatic Calibration: The system uses automatic calibration to ensure high accuracy and consistent results.

Advanced Image Processing: Uses advanced image processing algorithms for precise measurement and defect detection.

High Throughput: Suitable for high-volume production lines, designed to operate at high speed without compromising accuracy.

5. Operating System and Software:
OS: Windows 10 (WIN10)

Software: Typically includes KOHYOUNG's proprietary software for managing inspections, data reporting, and quality control analysis. It features an intuitive interface for easy operation and analysis.

6. Additional Information:
Integration: The system can be integrated with other production line equipment and systems (e.g., AOI, pick-and-place machines) to create a comprehensive quality control solution.

User Interface: KOHYOUNG provides a user-friendly GUI for easy setup and operation, often with customizable settings for different inspection profiles.

If you need it, just feel free to contact becky@hysmt.cn!
