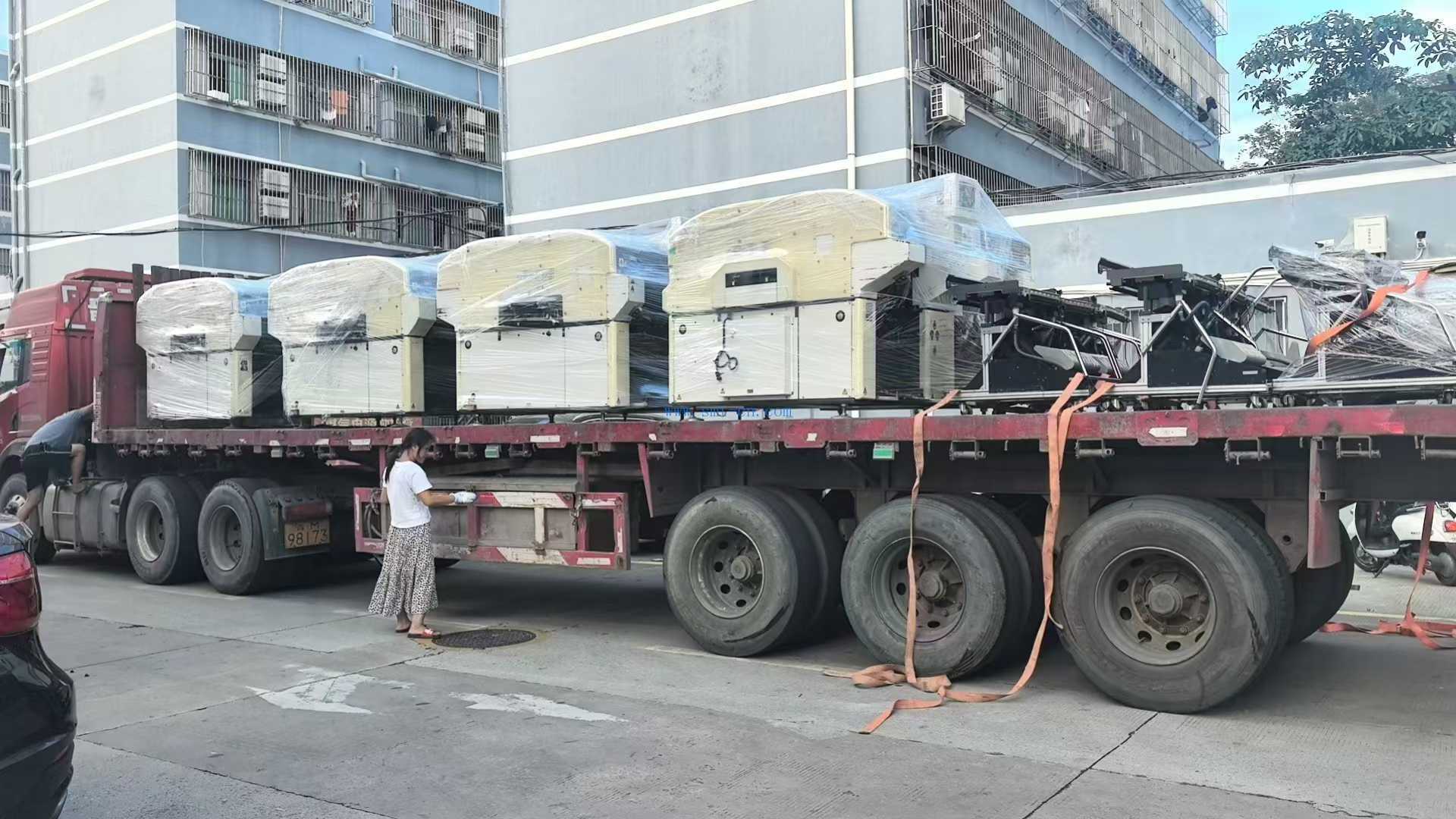

Recently, our warehouse newly arrived Many sets of excellent CM212 high-speed mounter, equipment running stable, complete accessories, maintenance, suitable for multi-species small batch SMT production line.

🌟 Support the site to see the machine | professional debugging shipment | after-sales technical support perfect!

Welcome customers and friends at home and abroad to call to consult, negotiate and cooperate, the number is limited, first-come-first-served!

The key parameters of Panasonic CM212 Mounter are listed below.

Key Performance Parameters
1. Mounter speed:

When using 12 nozzles, the speed is 0.051 sec/chip (theoretical maximum speed is about 54,000 CPH).
0.065 sec/chip with 8 nozzles

2. Mounting accuracy:

Chip element: ±50 μm (Cpk≥1.0)
QFP element: ±30 μm (Cpk≥1.0)

Compatibility parameters
3. Component size range:
Minimum 0402 (01005) to maximum 24 x 24mm (8 nozzle configuration)
4. Substrate size:
Minimum 50 x 50mm, maximum 400 x 250mm

Equipment Configuration
5. Nozzle type:
Optional hanging 8 or 12 nozzles, four sets of placement heads
6.Feeder station capacity:
Support 8mm double slot Feeder, maximum 80 pcs (160 kinds of materials)
7. Power supply and air source:
Power supply: three-phase AC200V, power 2.5kVA
Air pressure requirements: 0.5MPa, flow rate of 150L/min (A.N.R)

Parameter Description.
Differences in speed result from the configuration of the number of nozzles: 12 nozzles are more efficient but may limit component size; 8 nozzles are compatible with larger components.
Accuracy data distinguishes between chip and QFP components, reflecting performance in different placement modes.
Substrates up to 400 x 250 mm indicate that the machine is suitable for small and medium-sized PCB production.
