FHY-600

编号 :

Contrast

Factory Direct Sale SMT Automatic Solder Paste Mixer Speed Regulating Equipment with New Condition Motor

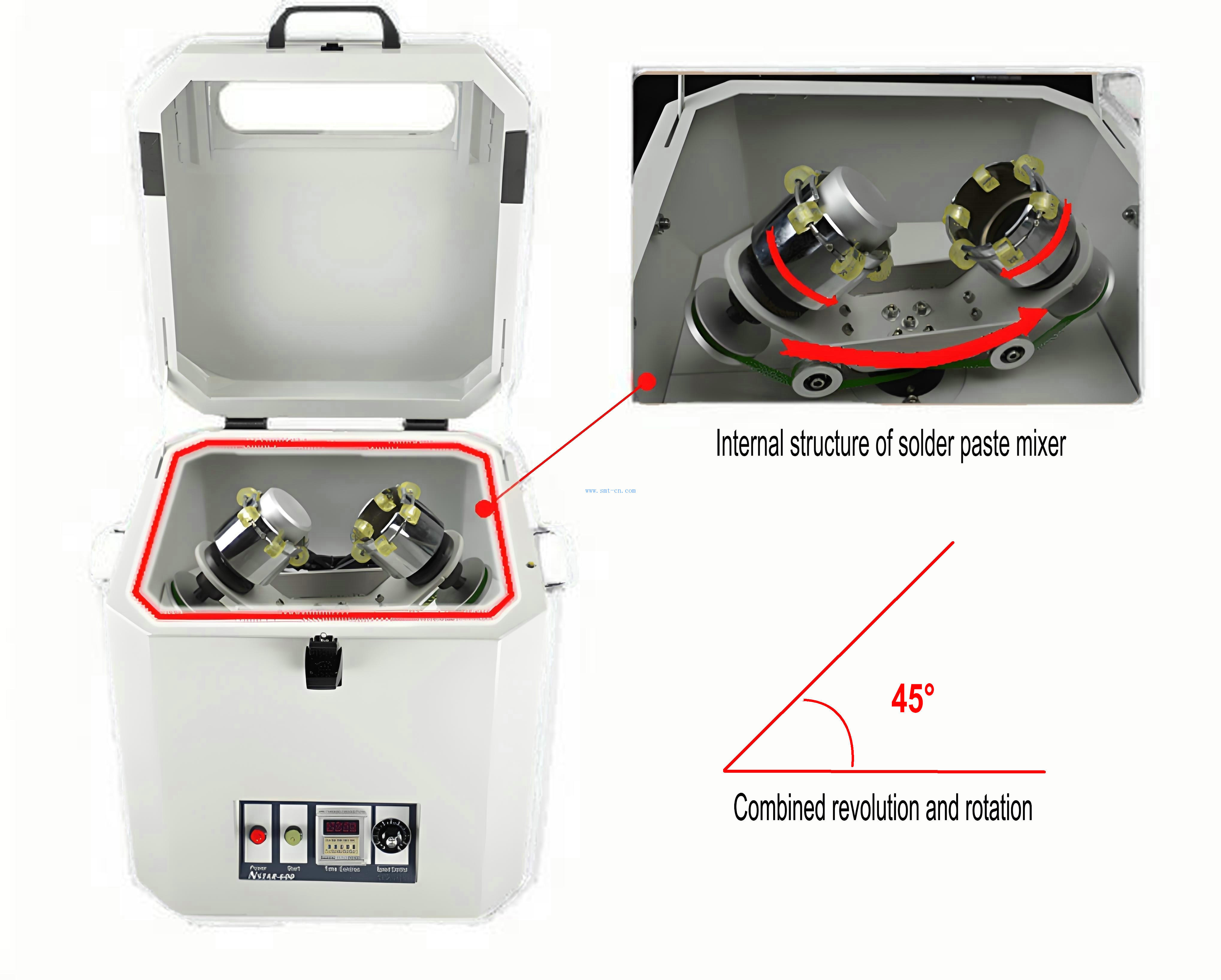

The solder paste mixer FHY-600 is provided with lifetime maintenance. The entire machine is covered by a one-year warranty. During the warranty period, any damaged parts will be replaced free of charge (note: belts are excluded. As belts are easily damaged items, they are not covered by the warranty. Please be informed)! Welcome to purchase! Introduction to Solder Paste Mixer: The FHY-600 mixer utilizes the rotational motion to generate centrifugal force, combined with the force produced by the self-rotation at a 45-degree angle to the rotational axis, causing the solder paste inside the tank to continuously move downward, while the solder paste at the bottom of the tube moves from the periphery towards the top of the tank, forming a swirling funnel-shaped mixing action. This can smoothly soften, degas, and achieve the appropriate viscosity of the solder paste. After the mixing, the solder paste has good wetting properties and uniform diffusion, enabling the reflow process to achieve the soldering performance.

Factory Direct Sale SMT Automatic Solder Paste Mixer Speed Regulating Equipment with New Condition Motor

Product Description

Product Name	SMT automatic solder paste mixer with adjustable speed model
Material	Stainless steel forging, sturdy and durable
Application	Good helper for SMD processing
Operating speed	Motor speed: 1400 RPM. Secondary rotation: 400 RPM.
Working power supply	220V/50HZ
Rated power	40W (with the option of 120W for more advanced functions available for customization)
Mixing capacity	0 - 500 grams × 2 cans (customizable options available for 1 - 2 kilograms)

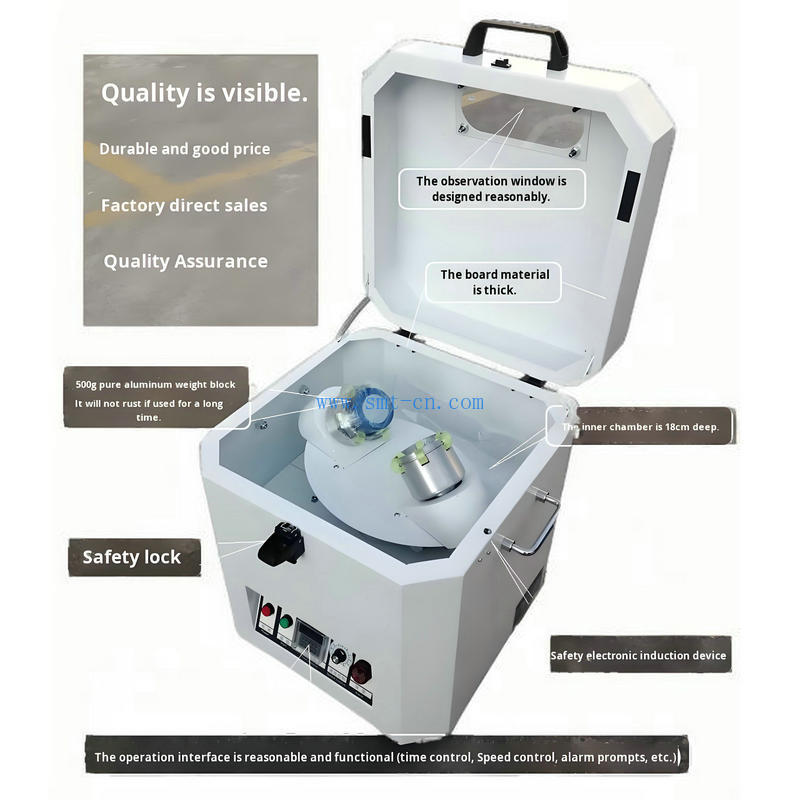

Accept the tin can	The diameter of the tank is standard 60-φ70. Other specifications can be customized. Standard 500G aluminum counterweight block included. It won't rust even after long-term use.
Time setting	1s~99m99s
Display mode	LED digital time display
Reminder Function	Buzzer warning - Safety - Humanization
Operation Status	The main unit operates stably; it has low noise; and it can be speed-adjusted by visual scal
Overall dimensions	The inner cavity measures 410mm × 410mm × 490mm, with an inner cavity depth of 180mm.

Eight Advantages

Focus on professional design - Eight advantages meet the needs of SMT production lines, creating a more powerful, more efficient and more secure solder paste mixer.

1. Stir evenly The principle of stirring is based on the stirring method of the motor's self-rotation and revolution. Under the revolution speed of 1400 rpm, an acceleration of approximately 200G is generated, during which the solid components and liquid components are stirred thoroughly to form a paste-like solder paste. This ensures the smooth operation of solder paste printing and SMT welding, and improves the quality of the finished products.

2. Rapid warming up During the mixing process, there is no need to remove and defrost the chilled solder paste. It can be quickly re-warmed to restore its activity and facilitate effective removal of bubbles, achieving the optimal soldering condition.

3. Easy to operate This machine has a relatively high degree of automation. It is controlled by time relays and is easy to operate with clear instructions. It also has high reliability.

4. Operational safety It features LED digital display, flashing lights and buzzer alarm. With a high safety factor, it ensures personal safety.

5. Extra-large capacity Using the 500G solder paste of each brand, you can stir two cans simultaneously, which saves the stirring time and improves the production efficiency.

6. Easy to clean When stirring, the solder paste is placed at 45 degrees and rotates along the axis direction. The solder paste will not stick to the cover of the container, nor will it fall into the chassis. This not only saves solder paste but also makes cleaning easier.

7. Easy to clean When stirring, the solder paste is placed at 45 degrees and rotates along the axis direction. The solder paste will not stick to the cover of the container, nor will it fall into the chassis. This not only saves solder paste but also makes cleaning easier.

8. Exquisite appearance The unique shape design is both beautiful and practical, and it is made using advanced surface painting technology.

Features

1. This product has a high degree of automation, stable performance, simple and understandable operation, high safety factor, and easy maintenance.

2. The unique design of the product is both aesthetically pleasing and practical. It is made using advanced surface powder coating technology.

3. The principle of this mixer is based on the rotational and spinning motion of the motor for stirring. There is no need to first remove and defrost the chilled solder paste; it can quickly warm up the solder paste within a short period of time, and then stir it evenly and remove the bubbles before it can be used. The vibration amplitude is small and the noise is low.

4. Compatible with 500g solder paste of all brands. It can mix two cans at a time, which can save mixing time and improve production efficiency.

5. During the mixing process, the solder paste box does not need to be opened, thus preventing the solder paste from oxidizing or absorbing moisture.

6. The sealed mixing system can precisely control the operating time, ensuring the stability of the softness (Q factor) of the solder paste. Moreover, when mixing new and old solder pastes, it can also produce a more active new solder paste.

7. This machine is controlled by a time relay, which is easy to operate and has high reliability.

8. Place the solder paste at 45 degrees and rotate it along the axis direction. The solder paste will no longer adhere to the cap. While stirring, It has the effect of eliminating air bubbles. Maintenance of the solder paste mixer: The blender is a precision mechanical device. Regular maintenance will extend its service life. a. The machine uses fully enclosed bearings and the interior must be kept clean. b. The belt of the self-rotation device is not a durable item. If it gets damaged, it should be replaced immediately.

Notes: 1.It is strictly prohibited to carry out the stirring operation when the lid is open or when the door lock is not engaged.

2. The machine vibrates slightly during operation. Therefore, it is necessary to place the machine on a stable and solid surface. If the machine shows any abnormal reaction during operation, immediately turn off the power supply and wait until all components of the machine have stopped operating before conducting an inspection.

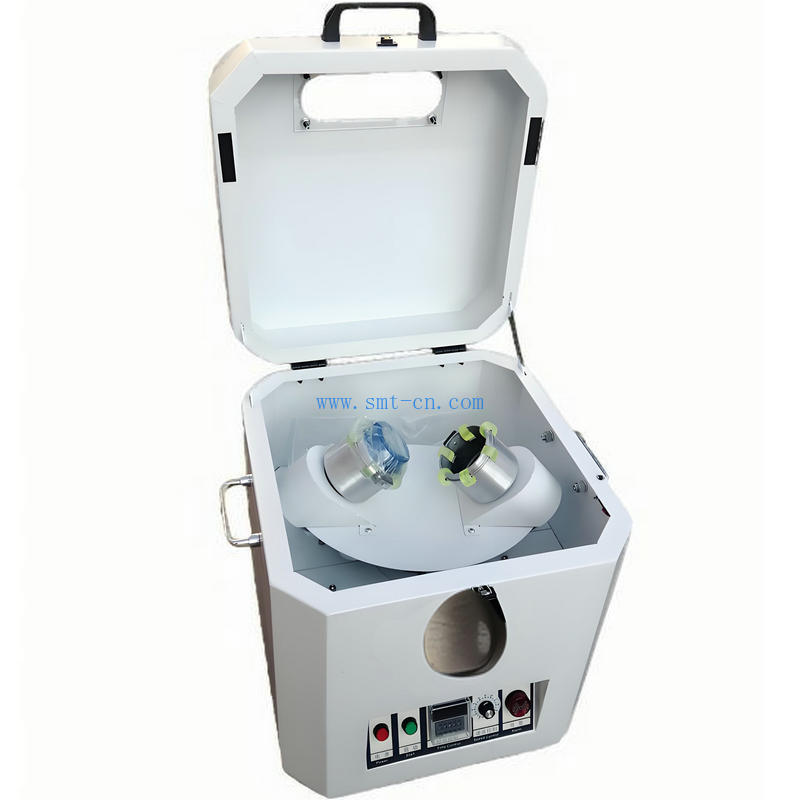

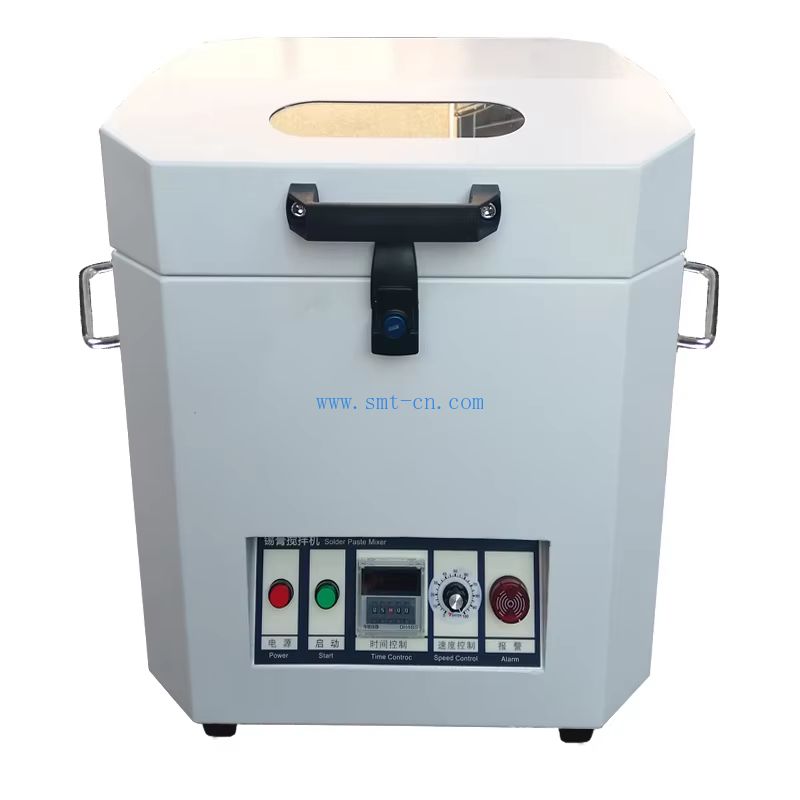

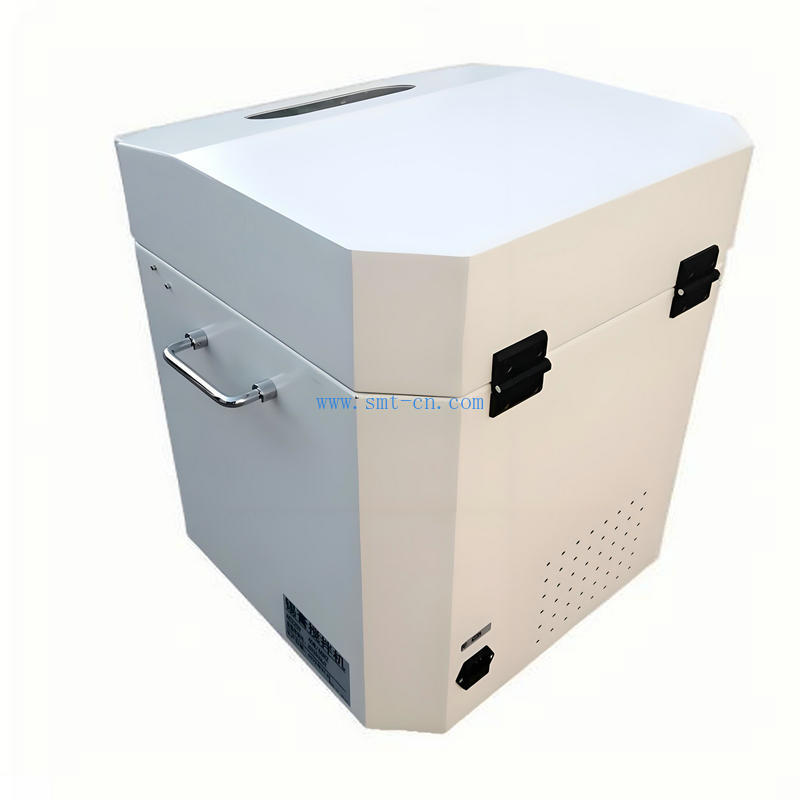

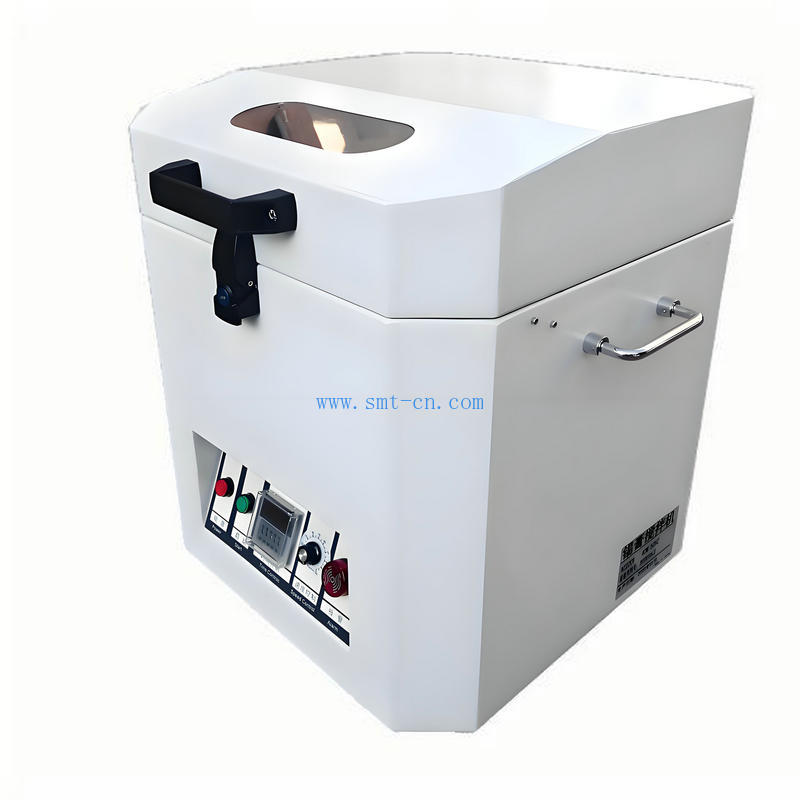

Product Show

The solder paste mixer FHY-600 is provided with lifetime maintenance. The entire machine is covered by a one-year warranty. During the warranty period, any damaged parts will be replaced free of charge (note: belts are excluded. As belts are easily damaged items, they are not covered by the warranty. Please be informed)! Welcome to purchase! Introduction to Solder Paste Mixer: The FHY-600 mixer utilizes the rotational motion to generate centrifugal force, combined with the force produced by the self-rotation at a 45-degree angle to the rotational axis, causing the solder paste inside the tank to continuously move downward, while the solder paste at the bottom of the tube moves from the periphery towards the top of the tank, forming a swirling funnel-shaped mixing action. This can smoothly soften, degas, and achieve the appropriate viscosity of the solder paste. After the mixing, the solder paste has good wetting properties and uniform diffusion, enabling the reflow process to achieve the soldering performance.

Packing & Shipping
