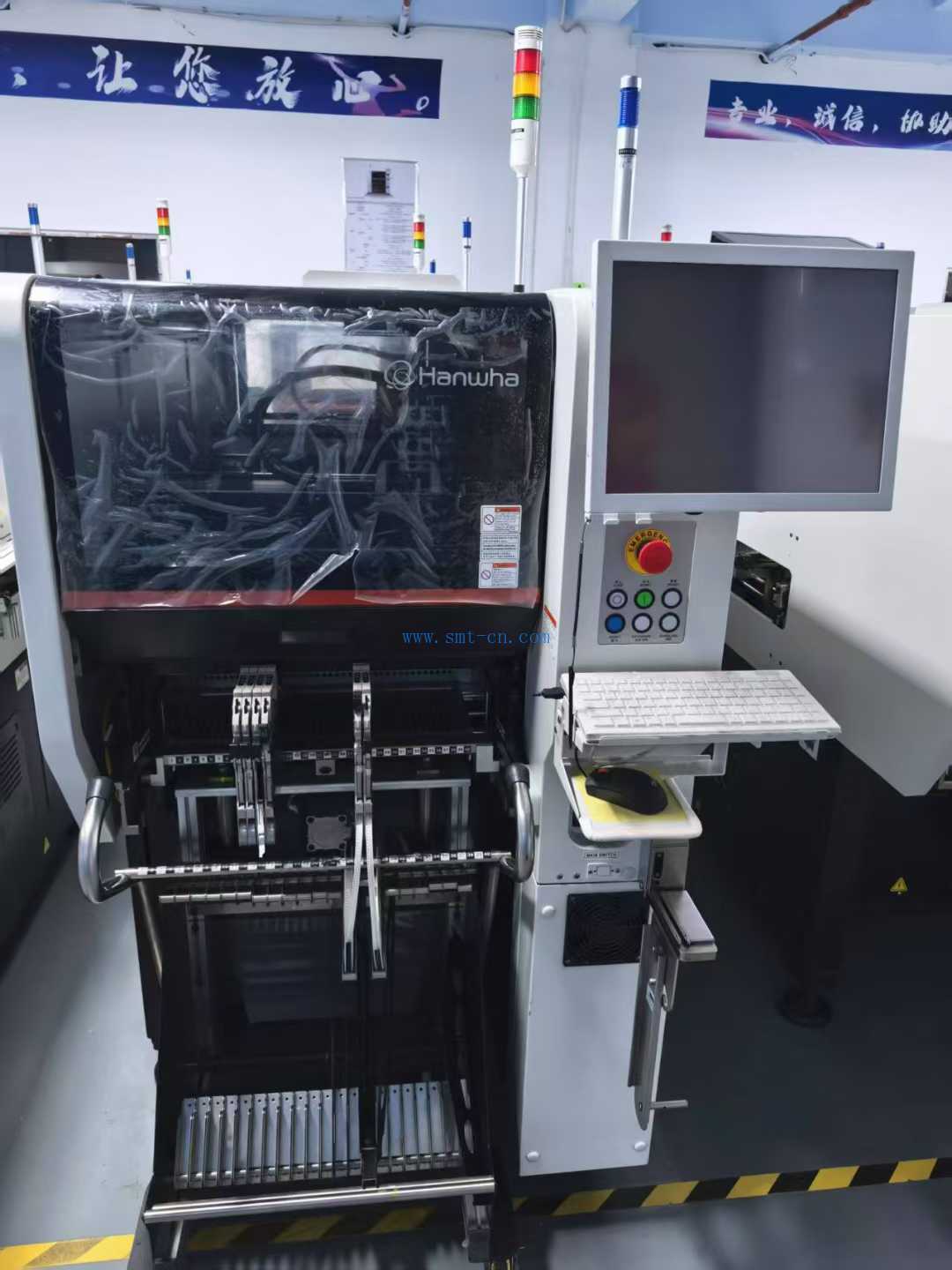

HANWHA DECAN Pick and Place Machines – High-Speed, Smart SMT Mounting Solutions

The HANWHA DECAN series is a next-generation lineup of high-speed, high-accuracy pick and place machines designed for flexible, smart, and efficient SMT manufacturing. These machines are ideal for high-volume production environments such as consumer electronics, automotive, and industrial electronics.

🔍 Main Models in the HANWHA DECAN Series:
✅ DECAN S1
Speed: Up to 47,000 CPH (Optimum)

Component Range: 0201 (metric) to 55 x 55mm

Board Size: Max 510 x 460mm (single lane)

Features: Compact, cost-effective model for high-speed placement

Best For: Small- to medium-volume production lines

✅ DECAN F2
Speed: Up to 80,000 CPH (Optimum)

Component Range: 0201 to 12mm height components

Board Size: Max 510 x 460mm

Gantry: Dual gantry with 6 heads

Features: Excellent balance of speed and flexibility

✅ DECAN F2L
Speed: Up to 90,000 CPH (Optimum)

Board Size: Supports larger PCBs – up to 1,200mm

Features: Dual lane, ideal for LED and long board applications

Advanced Features: Auto teaching, smart feeders, MES integration

✅ DECAN S2
Speed: Up to 47,000 CPH

Compact footprint and easy setup

High placement accuracy, suitable for fine-pitch components

Great for: Flexible production and pilot runs

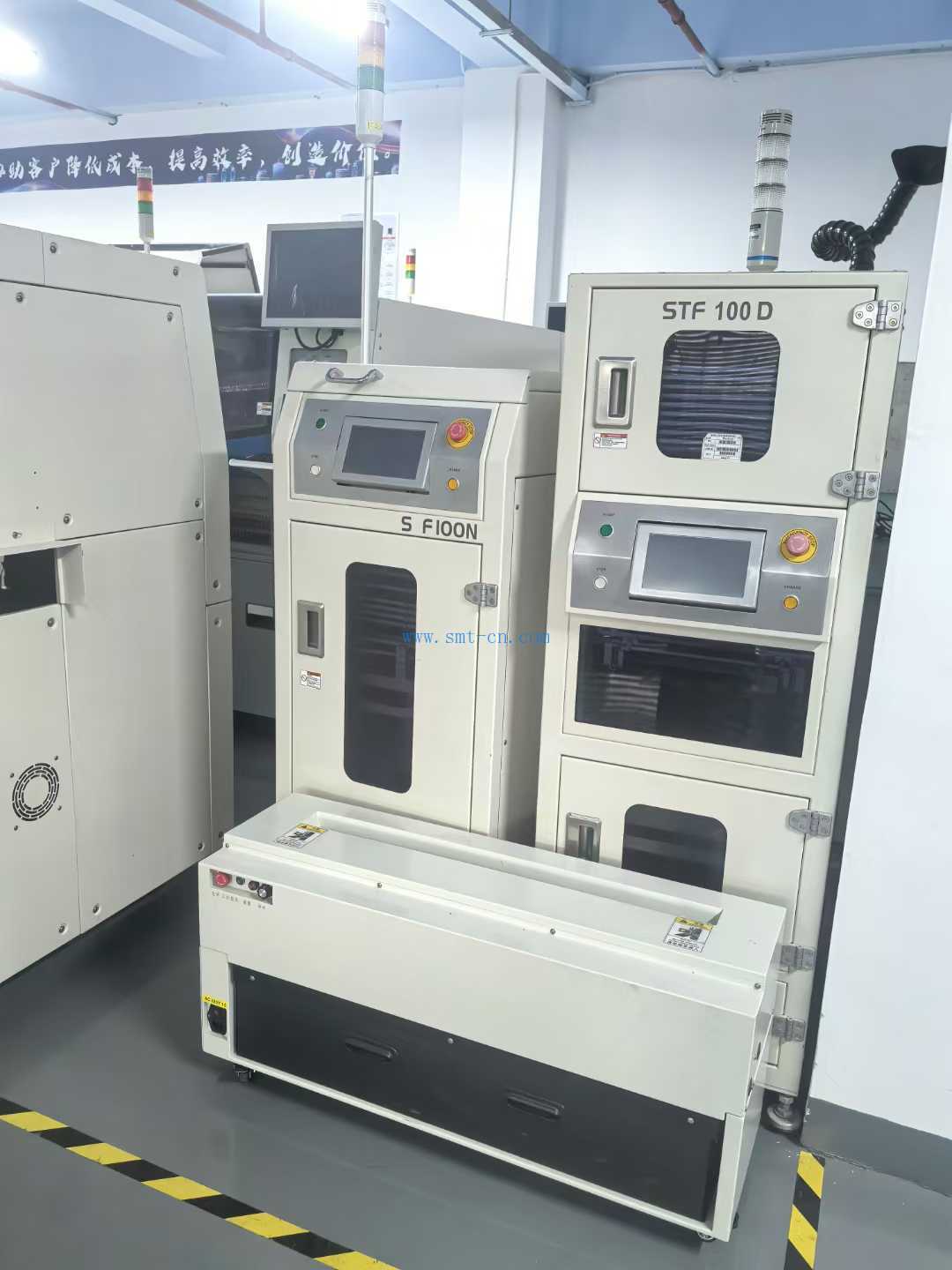

✅ DECAN STF100D / SF100N (Optional additions to your lineup)
For customers needing ultra high-speed, high-feeder capacity, and dual-lane solutions.

🚀 Key Features of HANWHA DECAN Series:
High-Speed Placement: Supports fast cycle times for dense boards

Smart Vision System: Real-time component recognition and correction

Flexible Production: Handles wide component sizes and board formats

Feeder Compatibility: Supports a wide range of HANWHA intelligent feeders

Smart Factory Ready: MES/ERP integration, traceability, and monitoring

Cost-Effective: High performance with low cost-per-placement ratio

Global Support: Backed by HANWHA’s strong service and parts supply network

🛠️ Applications:
Consumer Electronics

Automotive PCBs

LED and Display Boards

Medical Devices

Industrial Controls

Contact us for availability, demo booking, and pricing for both new and refurbished HANWHA DECAN machines. Rental options are also available!

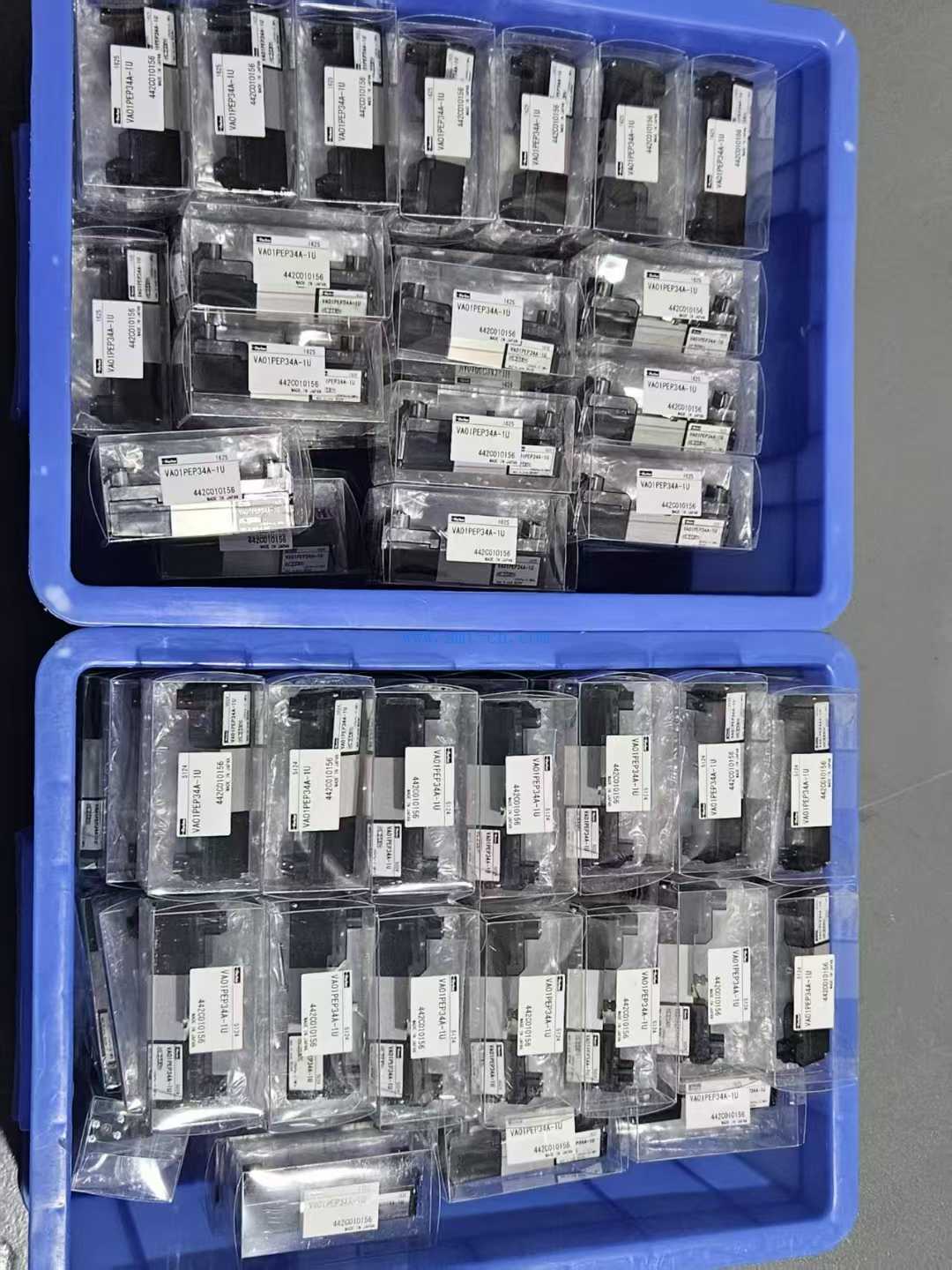

And we have below valve in stock! Visit Us for HANWHA Machines and Parts – See the Equipment, Enjoy Good Tea, Fresh Fruits, and Warm Hospitality!
